CAN BUS CABLES 120Ω
Application
These cables are dedicated to the shipbuilding industry.
Standards
- IEC 60092-350/351/352/353/359/370
/376 - IEC 60332-1-2
- IEC 60332-3-22
- IEC 60754-1/2
- IEC 61034

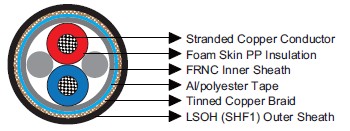

Construction
- Conductors: Stranded tinned copper 21AWG.
- Insulation: Foam skin PP.
- Inner Sheath: Thermoplastic copolymer (FRNC).
- Overall Screen1: Aluminium/polyester tape.
- Overall Screen2: Tinned copper braid.
- Outer Sheath: LSOH (SHF1).
Core Identification
- Pair 1: Blue, Red
- Pair 2: Brown, Green
Electrical Properties
| Characteristic Impedance | Ω | 120 ± 18 | |
| Mutual Capacitance @1KHz | nF/km | 36 | |
| Insulation Resistance | GΩ.km | 5 | |
| 1 pair | 2 pair | ||
| Attenuation @0.1MHz | dB/100m | 0.65 | 0.3 |
| Attenuation @1MHz | dB/100m | 1.9 | 1.1 |
| Attenuation @5MHz | dB/100m | 4.3 | 2.8 |
| Attenuation @10MHz | dB/100m | 8.1 | 3.9 |
| Attenuation @20MHz | dB/100m | 10.5 | 5.7 |
Mechanical and Thermal Properties
- Bending Radius for Fixed Installations: 10×OD
- Temperature Range: -30℃ ~ +80℃
Dimensions and Weight
| Part No.Construction No. of elements×No. of cores in element×Cross section(mm²)Core Diameter mmNominal Overall Diameter mmNominal Weight kg/km | ||||
| MLN-09YSH(ST)CH-1×2×21A | 1×2×21 AWG | 2.4 | 7.7 | 79 |
| MLN-09YSH(ST)CH-2×2×21A | 2×2×21 AWG | 2.2 | 8.4 | 90 |
