KX Series Coaxial Cables 50 Ω/75 Ω
Application
These radio frequency cables are suitable for high-frequency data transmission(communication equipment, radar, instrumentation equipment) and video signal transmission.
Standards
- In line with MIL C17
- IEC 60092-359
- IEC 60332-3-22
- IEC 60754-1/2
- IEC 61034

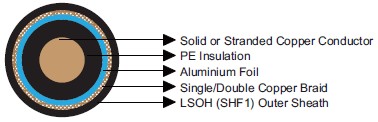

Construction
- Conductors: Solid or stranded CCS (Bare copper plated steel), BC (Bare copper).
- Insulation: PE.
- Fire Barriers: Aluminium foil.
- Screen: Single or double braid. Bare, tinned or silvered copper
- Outer Sheath: LSOH (SHF1).
Electrical Properties
| KX 3B | KX 6A | KX 8 | ||
| Characteristic Impedance | Ω | 50 | 75 | 75 |
| Capacitance | pF/m | 106 | 72 | 72 |
| Velocity | % | 66 | 66 | 66 |
| Attenuation @200MHz | dB/100m | 45 | 20 | 12 |
Mechanical and Thermal Properties
- Bending Radius for Fixed Installations: 10×OD
- Temperature Range: -30℃ ~ +60℃
Dimensions and Weight
50 Ω
| Part No. | Cable Type | Conductor Stranding No.×mm | Conductor Diameter mm | Dielectric Diameter mm | Nominal Overall Diameter mm | Nominal Weight kg/km |
| MLN-KX3B | KX 3B | 7×0.16 CCS | 0.48 | 1.50 | 2.55 | 10 |
75 Ω
| Part No. | Cable Type | Conductor Stranding No.×mm | Conductor Diameter mm | Dielectric Diameter mm | Nominal Overall Diameter mm | Nominal Weight kg/km |
| MLN-KX6A | KX 6A | 7×0.20 BC | 0.6 | 3.7 | 6.1 | 57 |
| MLN-KX8 | KX 8 | 7×0.40 BC | 1.2 | 7.25 | 10.3 | 145 |
