MRE-2X(St)H 150/250V XLPE Insulated, LSOH (SHF1) Sheathed, Overall Screened Flame Retardant Instrumentation & Control Cables (Multipair/Multitriple)

Application

These cables are used on board of ships at all locations for fixed installations not subject to mechanical risk complying with IEC standards 60092-352. These cables are flame retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial vessels.

Standards

  • IEC 60092-350/351/376/359
  • IEC 60332-1
  • IEC 60332-3-22
  • IEC 60754-1/2
  • IEC 61034

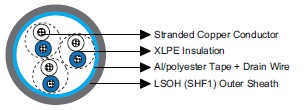

Construction

IEC60092 Offshore & Marine Cable

  • Conductors: Class 2 stranded copper conductor.
  • Insulation: XLPE.
  • Cabling Element: Pair/Triple.
  • Overall Screen: Al/polyester tape.
  • Drain Wire: Tinned copper wire.
  • Outer Sheath: LSOH (SHF1). SHF2 can be offered upon request.

Core Identification

  • Pair: White/blue with printed pair number and core number.
  • Triple: White/blue/red with printed triple number.

Mechanical and Thermal Properties

  • Bending Radius for Fixed Installations: 6×OD
  • Temperature Range: -30℃ ~ +80℃

Dimensions and Weight

Part No.Construction No. of elements×No. of cores in element×Cross section(mm²)Nominal Sheath Thickness mmNominal Overall Diameter mmNominal Weight kg/km
MRE-2X(St)H-2P0.52×2×0.50.41.08.575
MRE-2X(St)H-4P0.54×2×0.50.41.110.0110
MRE-2X(St)H-7P0.57×2×0.50.41.112.0160
MRE-2X(St)H-10P0.510×2×0.50.41.215.0225
MRE-2X(St)H-14P0.514×2×0.50.41.316.5290
MRE-2X(St)H-19P0.519×2×0.50.41.318.0370
MRE-2X(St)H-24P0.524×2×0.50.41.420.5460
MRE-2X(St)H-1P0.751×2×0.750.51.06.960
MRE-2X(St)H-2P0.752×2×0.75*0.51.07.880
MRE-2X(St)H-3P0.753×2×0.750.51.110.8130
MRE-2X(St)H-4P0.754×2×0.750.51.211.7160
MRE-2X(St)H-7P0.757×2×0.750.51.314.1240
MRE-2X(St)H-8P0.758×2×0.750.51.315.0270
MRE-2X(St)H-10P0.7510×2×0.750.51.416.9320
MRE-2X(St)H-12P07.512×2×0.750.51.417.6360
MRE-2X(St)H-14P0.7514×2×0.750.51.418.3410
MRE-2X(St)H-16P0.7516×2×0.750.51.519.8470
MRE-2X(St)H-19P0.7519×2×0.750.51.520.7530
MRE-2X(St)H-24P0.7524×2×0.750.51.623.5670
MRE-2X(St)H-30P0.7530×2×0.750.51.726.3820
MRE-2X(St)H-32P0.7532×2×0.750.51.726.8860
MRE-2X(St)H-37P0.7537×2×0.750.51.828.3990
MRE-2X(St)H-1P1.01×2×1.00.51.07.370
MRE-2X(St)H-2P1.02×2×1.0*0.51.08.3100
MRE-2X(St)H-3P1.03×2×1.00.51.211.8160
MRE-2X(St)H-4P1.04×2×1.00.51.212.5190
MRE-2X(St)H-7P1.07×2×1.00.51.315.1290
MRE-2X(St)H-8P1.08×2×1.00.51.316.1320
MRE-2X(St)H-10P1.010×2×1.00.51.418.2390
MRE-2X(St)H-12P1.012×2×1.00.51.418.9450
MRE-2X(St)H-14P1.014×2×1.00.51.519.8510
MRE-2X(St)H-16P1.016×2×1.00.51.521.3570
MRE-2X(St)H-19P1.019×2×1.00.51.622.4670
MRE-2X(St)H-24P1.024×2×1.00.51.725.5830
MRE-2X(St)H-30P1.030×2×1.00.51.828.61030
MRE-2X(St)H-32P1.032×2×1.00.51.829.11080
MRE-2X(St)H-37P1.037×2×1.00.51.930.71230
MRE-2X(St)H-1P1.51×2×1.50.61.08.390
MRE-2X(St)H-2P1.52×2×1.5*0.61.19.7140
MRE-2X(St)H-3P1.53×2×1.50.61.213.6210
MRE-2X(St)H-4P1.54×2×1.50.61.314.7260
MRE-2X(St)H-7P1.57×2×1.50.61.417.8400
MRE-2X(St)H-8P1.58×2×1.50.61.419.0450
MRE-2X(St)H-10P1.510×2×1.50.61.521.5540
MRE-2X(St)H-12P1.512×2×1.50.61.622.6630
MRE-2X(St)H-14P1.514×2×1.50.61.623.4710
MRE-2X(St)H-16P1.516×2×1.50.61.725.4820
MRE-2X(St)H-19P1.519×2×1.50.61.726.5930
MRE-2X(St)H-24P1.524×2×1.50.61.930.41180
MRE-2X(St)H-30P1.530×2×1.50.62.034.11460
MRE-2X(St)H-32P1.532×2×1.50.62.034.71540
MRE-2X(St)H-37P1.537×2×1.50.62.136.61760
MRE-2X(St)H-1T0.751×3×0.750.51.07.270
MRE-2X(St)H-2T0.752×3×0.750.51.111.0130
MRE-2X(St)H-3T0.753×3×0.750.51.211.8170
MRE-2X(St)H-4T0.754×3×0.750.51.212.9210
MRE-2X(St)H-7T0.757×3×0.750.51.316.2330
MRE-2X(St)H-8T0.758×3×0.750.51.417.5380
MRE-2X(St)H-10T0.7510×3×0.750.51.519.9460
MRE-2X(St)H-12T07.512×3×0.750.51.520.9520
MRE-2X(St)H-14T0.7514×3×0.750.51.521.8590
MRE-2X(St)H-16T0.7516×3×0.750.51.623.3670
MRE-2X(St)H-19T0.7519×3×0.750.51.725.3790
MRE-2X(St)H-24T0.7524×3×0.750.51.828.1980
MRE-2X(St)H-30T0.7530×3×0.750.51.931.11200
MRE-2X(St)H-32T0.7532×3×0.750.51.932.21270
MRE-2X(St)H-37T0.7537×3×0.750.52.033.91450
MRE-2X(St)H-1T1.01×3×1.00.51.07.780
MRE-2X(St)H-2T1.02×3×1.00.51.212.1160
MRE-2X(St)H-3T1.03×3×1.00.51.212.8200
MRE-2X(St)H-4T1.04×3×1.00.51.314.2260
MRE-2X(St)H-7T1.07×3×1.00.51.417.8410
MRE-2X(St)H-8T1.08×3×1.00.51.419.0460
MRE-2X(St)H-10T1.010×3×1.00.51.521.6560
MRE-2X(St)H-12T1.012×3×1.00.51.623.0660
MRE-2X(St)H-14T1.014×3×1.00.51.624.0740
MRE-2X(St)H-16T1.016×3×1.00.51.725.6840
MRE-2X(St)H-19T1.019×3×1.00.51.827.8990
MRE-2X(St)H-24T1.024×3×1.00.51.930.81230
MRE-2X(St)H-30T1.030×3×1.00.52.034.21510
MRE-2X(St)H-32T1.032×3×1.00.52.035.41600
MRE-2X(St)H-37T1.037×3×1.00.52.137.31830
MRE-2X(St)H-1T1.51×3×1.50.61.18.9110
MRE-2X(St)H-2T1.52×3×1.50.61.213.8210
MRE-2X(St)H-3T1.53×3×1.50.61.314.9280
MRE-2X(St)H-4T1.54×3×1.50.61.316.3350
MRE-2X(St)H-7T1.57×3×1.50.61.520.8570
MRE-2X(St)H-8T1.58×3×1.50.61.622.4660
MRE-2X(St)H-10T1.510×3×1.50.61.725.5790
MRE-2X(St)H-12T1.512×3×1.50.61.726.9920
MRE-2X(St)H-14T1.514×3×1.50.61.828.31050
MRE-2X(St)H-16T1.516×3×1.50.61.830.01180
MRE-2X(St)H-19T1.519×3×1.50.61.932.51390
MRE-2X(St)H-24T1.524×3×1.50.62.136.31740
MRE-2X(St)H-30T1.530×3×1.50.62.240.32150
MRE-2X(St)H-32T1.532×3×1.50.62.341.92300
MRE-2X(St)H-37T1.537×3×1.50.62.444.12620
