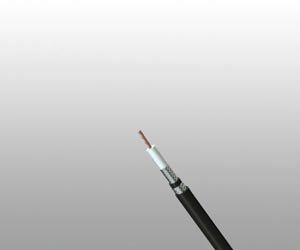

RG213 Armoured Coaxial Cable Applications
These 50Ω coaxial cables are suitable for installation on board of ships and other indoor marine environments.
RG213 Armoured Coaxial Cable Standards
| IEC 60092-350 | IEC 60332-3-22 |
| IEC 60754-1,2 | IEC 61034-1,2 |
| NEK 606:2004 |
 |  |

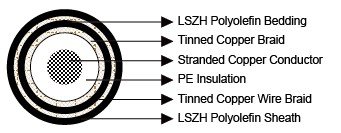

RG213 Armoured Coaxial Cable Construction
- Conductors : 13AWG tinned copper.
- Insulation : PE.
- Shielding : Tinned copper braid.
- Bedding : Low smoke and halogen-free polyolefin, coloured black.
- Armour : Tinned Copper wire braid.
- Outer Sheath : Low smoke and halogen-free polyolefin.
RG213 Armoured Coaxial Cable Electrical Characteristics
| AWG | 13 | |
| Conductor Construction No./Diameter of Wires | -/mm | 7/0.75 |
| Nominal Conductor Diameter | mm | 2.24 |
| Impedance | Ω | 50+/-3 |
| Nominal Attenuation@100MHz | dB/100m | 7.5 |
| Nominal Attenuation@200MHz | dB/100m | 10.5 |
| Nominal Attenuation@400MHz | dB/100m | 15.1 |
| Nominal Attenuation@1000MHz | dB/100m | 29.5 |
| Capacitance | pF/m | 101 |
| Velocity of Propagation | % | 66 |
| Conductor DCR | Ω/km | 5.7 |
| Shield DCR | Ω/km | 3.9 |
| Inductance | μH/m | 0.246 |
| Time Delay | ns/m | 5.0 |
Mechanical and Thermal Properties
- Bending Radius : 15×OD.
- Temperature Range : -30℃ ~ +75℃.
RG213 Armoured Coaxial Cable Dimensions and Weight
| Nominal Inner Conductor Diameter mm | Nominal Insulation Thickness mm | Nominal Sheath Thickness mm | Nominal Overall Diameter mm | Nominal Weight kg/km |
| 2.24 | 2.2 | 1.14 | 13.9 | 379 |
