RG59 Armoured Coaxial Cable

Home/NEK 606 Offshore & Marine Cables/RG59 Armoured Coaxial Cable

RG59 Armoured Coaxial Cable Applications

These 75Ω coaxial cables are suitable for installation on board of ships and other indoor marine environments.

RG59 Armoured Coaxial Cable Standards

IEC 60092-350IEC 60332-3-22
IEC 60754-1,2IEC 61034-1,2
NEK 606:2004

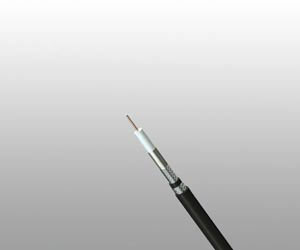

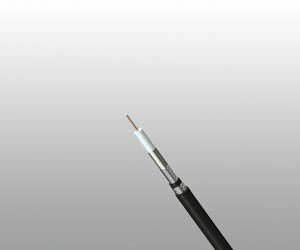

RG59 Armoured Coaxial CableRG59 Armoured Coaxial Cable

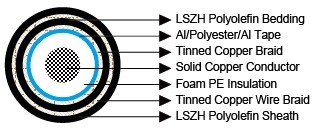

RG59 Armoured Coaxial Cable Construction

  • Conductors : 20AWG solid bare copper.
  • Insulation : Foam PE.
  • Shielding1 : Al/Polyester/Al tape.
  • Shielding2 : Tinned copper braid.
  • Bedding : Low smoke and halogen-free polyolefin, coloured black.
  • Armour : Tinned Copper wire braid.
  • Outer Sheath : Low smoke and halogen-free polyolefin.

RG59 Armoured Coaxial Cable Electrical Characteristics

AWG20
Nominal Conductor Diametermm0.8
ImpedanceΩ75+/-5
Nominal Attenuation@100MHzdB/100m7.6
Nominal Attenuation@270MHzdB/100m12.5
Nominal Attenuation@540MHzdB/100m17.9
Nominal Attenuation@720MHzdB/100m20.9
Nominal Attenuation@750MHzdB/100m21.3
Nominal Attenuation@1000MHzdB/100m24.9
CapacitancepF/m53.5
Velocity of Propagation%83
Conductor DCRΩ/km32.8
Shield DCRΩ/km12.5
InductanceμH/m0.318
Time Delayns/m4.0

Mechanical and Thermal Properties

  • Bending Radius : 15×OD.
  • Temperature Range : -30℃ ~ +75℃.

RG59 Armoured Coaxial Cable Dimensions and Weight

Nominal Inner Conductor Diameter mmNominal Insulation Thickness mmNominal Sheath Thickness mmNominal Overall Diameter mmNominal Weight kg/km
0.81.41.210.0177
