S12 RU(c) 250 V Applications
These cables are flame retardant, low smoke and halogen free, used for living, quarter and office areas.
S12 RU(c) 250 V Standards
| IEC 60092-376 | IEC 60092-351 |
| IEC 60092-359 | IEC 60332-1 |
| IEC 60332-3-22 | IEC 60754-1,2 |
| IEC 61034-1,2 | NEK 606:2004 |
 |  |

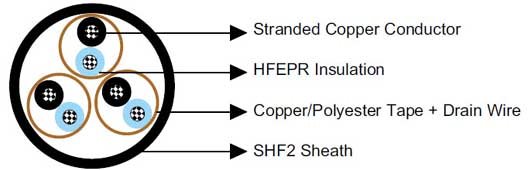

S12 RU(c) 250 V Construction
- Conductors : Circular tinned annealed stranded copper wire to IEC 60228 class 2.
- Insulation : Halogen free EPR compound.
- Twinning : Colour coded cores twisted together.
- Collective Shielding : Pairs/triples are layed up and collectively screened by copper backed polyester tape in contact with a stranded tinned copper drain wire. Pairs/triples are numbered with numbered tape or by numbers printed directly on the insulated conductors.
- Outer Sheath : Halogen free thermosetting compound, SHF2, coloured grey (blue for intrinsically safe).
S12 RU(c) 250 V Electrical Characteristics
| Nominal Cross Section Area | mm² | 0.75 | 1.0 | 1.5 |
| Nominal Conductor Diameter | mm | 1.1 | 1.3 | 1.6 |
| Maximum Resistant@20℃ | Ω/km | 26.3 | 19.3 | 12.9 |
| Mutual Capacitance | nF/km | 80 | 90 | 100 |
| Nominal Inductance@1KHz | MH/km | 0.682 | 0.645 | 0.632 |
| Maximum L/R@1KHz | μH/Ω | 20 | 25 | 35 |
| Operating Voltage | V | 250 | 250 | 250 |
Mechanical and Thermal Properties
- Bending Radius : 8×OD (during installation); 6×OD (fixed installed).
- Temperature Range : -20℃ ~ +90℃.
S12 RU(c) 250 V Dimensions and Weight
| Construction No. of elements×No. of cores in element×Cross section (mm²) | Nominal Insulation Thickness mm | Nominal Sheath Thickness mm | Nominal Overall Diameter mm | Nominal Weight kg/km |
| 2×2×0.75 | 0.6 | 1.1 | 9.4 | 160 |
| 4×2×0.75 | 0.6 | 1.1 | 11.5 | 215 |
| 7×2×0.75 | 0.6 | 1.3 | 13.6 | 300 |
| 8×2×0.75 | 0.6 | 1.3 | 14.7 | 340 |
| 12×2×0.75 | 0.6 | 1.4 | 17.6 | 465 |
| 16×2×0.75 | 0.6 | 1.5 | 19.7 | 595 |
| 19×2×0.75 | 0.6 | 1.5 | 20.7 | 665 |
| 24×2×0.75 | 0.6 | 1.7 | 24.1 | 850 |
| 32×2×0.75 | 0.6 | 2.0 | 26.7 | 1065 |
| 2×3×0.75 | 0.6 | 1.1 | 11.0 | 170 |
| 3×3×0.75 | 0.6 | 1.1 | 12.1 | 235 |
| 4×3×0.75 | 0.6 | 1.2 | 13.1 | 280 |
| 7×3×0.75 | 0.6 | 1.4 | 15.7 | 410 |
| 8×3×0.75 | 0.6 | 1.4 | 17.5 | 490 |
| 12×3×0.75 | 0.6 | 1.5 | 20.6 | 645 |
| 16×3×0.75 | 0.6 | 1.6 | 23.1 | 835 |
| 19×3×0.75 | 0.6 | 1.7 | 24.3 | 940 |
| 24×3×0.75 | 0.6 | 1.8 | 28.2 | 1210 |
| 2×2×1.0 | 0.6 | 1.1 | 9.9 | 190 |
| 4×2×1.0 | 0.6 | 1.1 | 12.3 | 255 |
| 7×2×1.0 | 0.6 | 1.3 | 14.7 | 370 |
| 8×2×1.0 | 0.6 | 1.3 | 15.7 | 410 |
| 12×2×1.0 | 0.6 | 1.5 | 18.9 | 565 |
| 16×2×1.0 | 0.6 | 1.6 | 21.1 | 730 |
| 19×2×1.0 | 0.6 | 1.7 | 22.5 | 830 |
| 24×2×1.0 | 0.6 | 1.8 | 25.9 | 1050 |
| 32×2×1.0 | 0.6 | 2.1 | 28.7 | 1315 |
| 3×3×1.0 | 0.6 | 1.1 | 12.9 | 280 |
| 4×3×1.0 | 0.6 | 1.3 | 14.0 | 335 |
| 7×3×1.0 | 0.6 | 1.5 | 16.9 | 500 |
| 12×3×1.0 | 0.6 | 1.6 | 22.1 | 795 |
| 16×3×1.0 | 0.6 | 1.6 | 24.8 | 1025 |
| 19×3×1.0 | 0.6 | 1.8 | 26.3 | 1175 |
| 24×3×1.0 | 0.6 | 2.0 | 30.4 | 1490 |
| 2×2×1.5 | 0.7 | 1.2 | 11.3 | 250 |
| 4×2×1.5 | 0.7 | 1.2 | 14.1 | 345 |
| 7×2×1.5 | 0.7 | 1.4 | 17.2 | 515 |
| 8×2×1.5 | 0.7 | 1.4 | 18.4 | 575 |
| 12×2×1.5 | 0.7 | 1.6 | 22.4 | 810 |
| 16×2×1.5 | 0.7 | 1.7 | 25.0 | 1045 |
| 19×2×1.5 | 0.7 | 1.8 | 26.4 | 1175 |
| 24×2×1.5 | 0.7 | 1.9 | 30.7 | 1505 |
| 32×2×1.5 | 0.7 | 2.2 | 33.9 | 1890 |
| 2×3×1.5 | 0.7 | 1.2 | 13.5 | 265 |
| 3×3×1.5 | 0.7 | 1.2 | 14.9 | 380 |
| 4×3×1.5 | 0.7 | 1.3 | 16.3 | 465 |
| 7×3×1.5 | 0.7 | 1.5 | 19.8 | 705 |
| 8×3×1.5 | 0.7 | 1.5 | 21.5 | 820 |
| 12×3×1.5 | 0.7 | 1.7 | 26.2 | 1140 |
| 16×3×1.5 | 0.7 | 1.8 | 29.4 | 1475 |
| 19×3×1.5 | 0.7 | 1.9 | 30.9 | 1675 |
| 24×3×1.5 | 0.7 | 2.1 | 36.2 | 2160 |
