S3 or S3/S7 BFOU(i) 250V

Home/NEK 606 Offshore & Marine Cables/S3 or S3/S7 BFOU(i) 250V

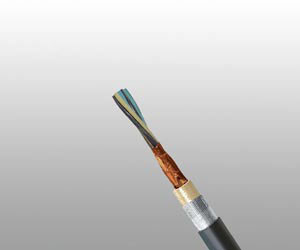

S3 or S3/S7 BFOU(i) 250V Applications

These cables are fire resistant, flame retardant, low smoke,halogen-free and mud resistant, used for instrumentation, communication, control and alarm systems.

S3 or S3/S7 BFOU(i) 250V Standards

IEC 60092-376IEC 60092-351
IEC 60092-359IEC 60332-1
IEC 60332-3-22IEC 60754-1,2
IEC 61034-1,2NEK 606:2004
S3 or S3/S7 BFOU(i) 250V S3 or S3/S7 BFOU(i) 250V

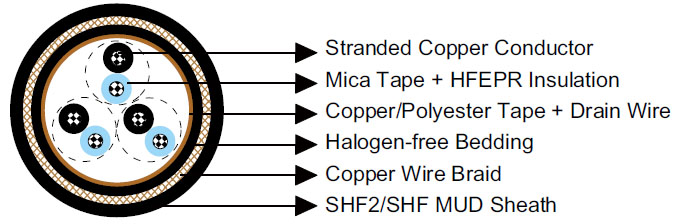

S3 or S3/S7 BFOU(i) 250V Construction

  • Conductors : Circular tinned annealed stranded copper wire to IEC 60228 class 2.
  • Insulation : Mica tape + Halogen free EPR compound.
  • Twinning : Colour coded cores twisted together.
  • Individual Shielding : Each pairs/triples are screened by copper backed polyester tape in contact with a stranded tinned copper drain wire and wrapped with polyester tape. Pairs/triples are numbered with numbered tape or by numbers printed directly on the insulated conductors.
  • Bedding : Halogen free compound.
  • Armour : Tinned copper wire braid.
  • Outer Sheath : Halogen free thermosetting compound, SHF2 (for TYPE S3). Halogen free MUD resistant thermosetting compound, SHF MUD (for TYPE S3/S7), coloured grey (blue for intrinsically safe).

S3 or S3/S7 BFOU(i) 250V Electrical Characteristics

Nominal Cross Section Areamm²0.751.01.52.5
Nominal Conductor Diametermm1.11.31.62.0
Maximum Resistant@20℃Ω/km26.319.312.98.02
Mutual CapacitancenF/km8595100110
Nominal Inductance@1KHzMH/km0.7310.6910.6730.629
Maximum L/R@1KHzμH/Ω20253555
Operating VoltageV250250250250

Mechanical and Thermal Properties

  • Bending Radius : 8×OD (during installation); 6×OD (fixed installed).
  • Temperature Range : -20℃ ~ +90℃.

S3 or S3/S7 BFOU(i) 250V Dimensions and Weight

Construction No. of elements×No. of cores in element×Cross section
(mm²)		Nominal Insulation Thickness
mm		Nominal Sheath Thickness
mm		Nominal Overall Diameter
mm		Nominal Weight
kg/km
InnerOuter
1×2×0.750.61.11.212.1225
2×2×0.750.61.11.316.7405
3×2×0.750.61.11.417.5540
4×2×0.750.61.11.418.6610
5×2×0.750.61.11.520.2705
6×2×0.750.61.11.521.7805
7×2×0.750.61.11.521.7830
8×2×0.750.61.11.623.6905
9×2×0.750.61.11.725.11000
10×2×0.750.61.11.726.21030
12×2×0.750.61.11.726.81145
14×2×0.750.61.11.828.21205
15×2×0.750.61.11.830.01305
16×2×0.750.61.11.930.61415
18×2×0.750.61.11.932.11475
19×2×0.750.61.21.932.71575
20×2×0.750.61.22.034.11700
21×2×0.750.61.22.035.01765
23×2×0.750.61.22.035.51895
24×2×0.750.61.22.137.71980
27×2×0.750.61.22.238.72165
30×2×0.750.61.22.239.92335
33×2×0.750.61.22.341.52535
37×2×0.750.61.22.342.72725
1×3×0.750.61.11.111.9245
2×3×0.750.61.11.415.5420
3×3×0.750.61.11.418.4580
4×3×0.750.61.11.419.7675
7×3×0.750.61.11.623.6960
8×3×0.750.61.11.725.0980
12×3×0.750.61.31.829.61435
16×3×0.750.61.41.932.61770
19×3×0.750.61.42.134.41985
24×3×0.750.61.82.239.62580
1×2×1.00.61.11.212.5245
2×2×1.00.61.11.417.6450
3×2×1.00.61.11.418.3600
4×2×1.00.61.11.419.3625
5×2×1.00.61.11.521.1920
6×2×1.00.61.11.622.8950
7×2×1.00.61.11.622.8860
8×2×1.00.61.11.624.7985
9×2×1.00.61.11.726.31135
10×2×1.00.61.11.727.41170
12×2×1.00.61.11.828.31300
14×2×1.00.61.11.829.51380
15×2×1.00.61.11.931.61510
16×2×1.00.61.11.932.11620
18×2×1.00.61.22.034.21745
19×2×1.00.61.22.034.51830
20×2×1.00.61.22.136.01975
21×2×1.00.61.22.137.32135
23×2×1.00.61.22.137.92295
24×2×1.00.61.22.239.82335
27×2×1.00.61.22.240.62500
30×2×1.00.61.22.342.12720
33×2×1.00.61.22.343.62940
37×2×1.00.61.42.445.43230
1×3×1.00.61.11.212.6275
2×3×1.00.61.11.418.8640
3×3×1.00.61.11.519.3665
4×3×1.00.61.11.520.9775
5×3×1.00.61.11.622.8965
6×3×1.00.61.11.725.41135
7×3×1.00.61.11.725.41180
8×3×1.00.61.11.727.01270
9×3×1.00.61.11.828.91450
10×3×1.00.61.11.931.11455
12×3×1.00.61.11.932.01685
14×3×1.00.61.22.033.81820
15×3×1.00.61.22.034.81935
16×3×1.00.61.22.136.02105
18×3×1.00.61.22.138.12310
19×3×1.00.61.22.238.62355
20×3×1.00.61.22.239.62590
21×3×1.00.61.22.240.42685
23×3×1.00.61.22.342.02935
24×3×1.00.61.22.342.83145
27×3×1.00.61.42.445.33255
30×3×1.00.61.42.547.43565
32×3×1.00.61.42.548.63755
1×2×1.50.71.11.213.5295
2×2×1.50.71.11.419.2545
3×2×1.50.71.11.520.2725
4×2×1.50.71.11.521.5770
5×2×1.50.71.11.623.4975
6×2×1.50.71.11.725.41130
7×2×1.50.71.11.725.41170
8×2×1.50.71.11.727.51225
9×2×1.50.71.11.829.41405
10×2×1.50.71.11.930.91440
12×2×1.50.71.11.931.61680
14×2×1.50.71.22.033.61750
15×2×1.50.71.22.136.01910
16×2×1.50.71.22.136.92055
18×2×1.50.71.22.238.92260
19×2×1.50.71.22.239.32395
20×2×1.50.71.22.240.82540
21×2×1.50.71.22.342.12660
23×2×1.50.71.22.342.72865
24×2×1.50.71.42.445.23080
27×2×1.50.71.42.446.13155
30×2×1.50.71.42.547.83440
32×2×1.50.71.42.649.03685
33×2×1.50.71.42.649.73740
37×2×1.50.71.42.651.24040
1×3×1.50.71.11.313.6325
2×3×1.50.71.11.518.5560
3×3×1.50.71.11.521.4800
4×3×1.50.71.11.623.7975
5×3×1.50.71.11.725.41195
6×3×1.50.71.11.828.31405
7×3×1.50.71.11.828.31470
8×3×1.50.71.11.830.21585
9×3×1.50.71.21.932.61835
10×3×1.50.71.22.035.11935
12×3×1.50.71.22.136.82115
14×3×1.50.71.22.138.32360
15×3×1.50.71.22.239.72530
16×3×1.50.71.22.240.82775
18×3×1.50.71.22.342.92905
19×3×1.50.71.22.343.33200
20×3×1.50.71.42.444.93305
21×3×1.50.71.42.445.83430
23×3×1.50.71.42.547.73755
24×3×1.50.71.42.548.63925
27×3×1.50.71.42.651.14115
30×3×1.50.71.42.753.54510
32×3×1.50.71.62.855.54850
1×2×2.50.71.11.314.0340
2×2×2.50.71.11.518.5560
3×2×2.50.71.11.521.6865
4×2×2.50.71.11.623.21010
5×2×2.50.71.11.725.31185
6×2×2.50.71.11.727.41370
7×2×2.50.71.11.727.41430
8×2×2.50.71.11.829.91560
9×2×2.50.71.11.931.91780
10×2×2.50.71.22.033.81775
12×2×2.50.71.22.034.61965
14×2×2.50.71.22.136.92275
15×2×2.50.71.22.239.52480
16×2×2.50.71.22.240.12590
18×2×2.50.71.22.342.32825
19×2×2.50.71.22.342.72930
20×2×2.50.71.42.444.83240
21×2×2.50.71.42.446.13375
23×2×2.50.71.42.546.93560
24×2×2.50.71.42.549.13660
27×2×2.50.71.42.650.34000
30×2×2.50.71.42.752.24370
33×2×2.50.71.42.754.14735
37×2×2.50.71.62.856.45225
1×3×2.50.71.11.214.5380
2×3×2.50.71.11.622.5950
3×3×2.50.71.11.623.41055
4×3×2.50.71.11.725.31250
5×3×2.50.71.11.727.41460
6×3×2.50.71.11.930.71735
7×3×2.50.71.11.930.71830
8×3×2.50.71.22.033.32025
9×3×2.50.71.22.035.42290
10×3×2.50.71.22.238.82405
12×3×2.50.71.22.240.02685
14×3×2.50.71.22.341.93000
15×3×2.50.71.22.343.13190
16×3×2.50.71.42.444.93420
18×3×2.50.71.42.547.23740
19×3×2.50.71.42.547.63885
20×3×2.50.71.42.548.94185
21×3×2.50.71.42.650.04370
23×3×2.50.71.42.752.14760
24×3×2.50.71.42.753.04785
27×3×2.50.71.62.856.25335
30×3×2.50.71.62.958.85855
32×3×2.50.71.63.060.66215
