S9 IYXI(c) 60 V Applications
These cables are flame retardant, low smoke and halogen-free, used for indoor telecommunication.
S9 IYXI(c) 60 V Standards
| IEC 60092-359 | IEC 60332-1 |
| IEC 60332-3-22 | IEC 60754-1,2 |
| IEC 61034-1,2 | NEK 606:2004 |
 |  |

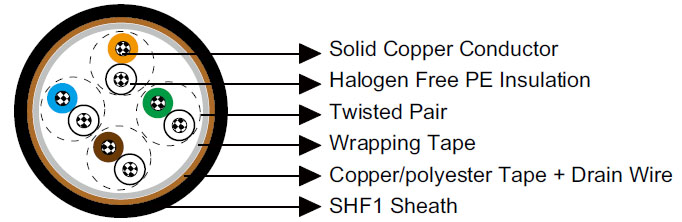

S9 IYXI(c) 60 V Construction
- Conductors : Solid tinned copper, 0.5mm.
- Insulation : Halogen-free thermoplastic compound PE.
- Twinning : Colour coded cores twisted together. Pairs are cross-stranded to finished cable or 10 pair units. The units are stranded to 20 – 30 – 50 pair cables. 2 pair is stranded as a star quad.
- Wrapping : Polyester tape.
- Collective Shielding : The cable core is screened by copper backed polyester tape in contact with a 0.5mm solid tinned drain wire.
- Sheath : Halogen-free thermoplastic compound, type SHF1, coloured grey.
S9 IYXI(c) 60 V Electrical Characteristics
| Nominal Conductor Diameter | mm | 0.5 |
| Maximum Resistant@20℃ | Ω/km | 95 |
| Nominal Inductance@1KHz | MH/km | 0.61 |
| Mutual Capacitance 1-pair cable | nF/km | 90 |
| Mutual Capacitance 2-pair cable | nF/km | 80 |
| Mutual Capacitance 4-pair and above cable | nF/km | 70 |
| Operating Voltage | V | 60 |
Mechanical and Thermal Properties
- Bending Radius : 8×OD (during installation); 6×OD (fixed installed).
- Temperature Range : -10℃ ~ +60℃.
S9 IYXI(c) 60 V Dimensions and Weight
| Construction No. of elements×No. of cores in element×Core diameter (mm) | Nominal Insulation Thickness mm | Nominal Sheath Thickness mm | Nominal Overall Diameter mm | Nominal Weight kg/km |
| 1×2×0.5 | 0.2 | 1.2 | 5.0 | 30 |
| 2×2×0.5 | 0.2 | 1.2 | 5.5 | 35 |
| 4×2×0.5 | 0.2 | 1.2 | 7.0 | 55 |
| 10×2×0.5 | 0.2 | 1.5 | 8.5 | 90 |
| 20×2×0.5 | 0.2 | 1.5 | 11.0 | 148 |
| 30×2×0.5 | 0.2 | 1.5 | 13.5 | 210 |
| 50×2×0.5 | 0.2 | 1.5 | 16.0 | 320 |
