Water Blocked P18 RU 0.6/1kV
Applications
These cables are flame retardant, low smoke, halogen freeand mud resistant, used for control, power and lighting systems.
Standards
| IEC 60092-353 | IEC 60092-351 |
| IEC 60092-359 | IEC 60332-1 |
| IEC 60332-3-22 | IEC 60754-1,2 |
| IEC 61034-1,2 | NEK 606:2004 |
| VG 95218 part 29 |
 |

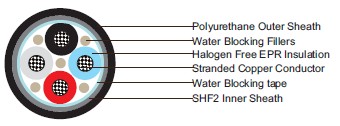

Construction
Conductors: Tinned annealed stranded copper to IEC 60228 class 2.
Insulation: Halogen-free EPR.
Filler: Water blocking fillers, if required
Water Blocking Elements: Water blocking tape and strings for providing longitudinal water tightness.
Inner Sheath: Halogen free thermosetting compound, SHF2, coloured black.
Outer Sheath: Polyurethane for providing transversal water tightness, PE is optional, but can not meet low smoke standard.
Electrical Characteristics
| Nominal Cross Section Area | mm² | 1.5 | 2.5 | 4 | 6 | 10 | 16 | 25 | 35 |
| Nominal Conductor Diameter | mm | 1.6 | 2.1 | 2.6 | 3.2 | 4 | 5.1 | 6.5 | 7.4 |
| Maximum DC Resistant@20℃ | Ω/km | 12.2 | 7.56 | 4.7 | 3.11 | 1.84 | 1.16 | 0.734 | 0.529 |
| Continuous Current Rating@45℃1 Core | A | 23 | 30 | 40 | 52 | 72 | 96 | 127 | 157 |
| Continuous Current Rating@45℃2 Core | A | 20 | 26 | 34 | 44 | 61 | 82 | 108 | 133 |
| Continuous Current Rating@45℃3&4 Core | A | 16 | 21 | 28 | 36 | 50 | 67 | 89 | 110 |
| Short Circuit Current 1s | A | 210 | 360 | 570 | 860 | 1430 | 2290 | 3580 | 5010 |
| Operating Voltage | KV | 0.6/1 | 0.6/1 | 0.6/1 | 0.6/1 | 0.6/1 | 0.6/1 | 0.6/1 | 0.6/1 |
| Nominal Cross Section Area | mm² | 50 | 70 | 95 | 120 | 150 | 185 | 240 | 300 |
| Nominal Conductor Diameter | mm | 8.7 | 10.3 | 12.2 | 13.8 | 15.1 | 17.0 | 19.6 | 21.9 |
| Maximum DC Resistant@20℃ | Ω/km | 0.391 | 0.27 | 0.195 | 0.154 | 0.126 | 0.1 | 0.0762 | 0.0607 |
| Continuous Current Rating@45℃1 Core | A | 196 | 242 | 293 | 339 | 389 | 444 | 522 | 601 |
| Continuous Current Rating@45℃2 Core | A | 167 | 206 | 249 | 288 | 331 | 444 | 444 | 511 |
| Continuous Current Rating@45℃3&4 Core | A | 137 | 169 | 205 | 237 | 272 | 311 | 365 | 421 |
| Short Circuit Current 1s | A | 7150 | 10020 | 13590 | 17170 | 21460 | 26470 | 34340 | 42930 |
| Operating Voltage | KV | 0.6/1 | 0.6/1 | 0.6/1 | 0.6/1 | 0.6/1 | 0.6/1 | 0.6/1 | 0.6/1 |
Note: For more than 4-cores, the current ratings may be calculated from the following formula (IN=I1/ ³√ N ), I1= Current rating for 1-core, N = Number of cores.
Ambient Temperature Correction Factors
| Ambient Temperature Correction Factors | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 |
| Rating Factor | 1.1 | 1.05 | 1.0 | 0.94 | 0.88 | 0.82 | 0.74 | 0.67 | 0.58 | 0.47 |
Mechanical and Thermal Properties
- Bending Radius : 8×OD (during installation); 6×OD (fixed installed).
- Temperature Range : -20℃ ~ +90℃.
Dimensions and Weight
| Construction No. of cores×Cross section (mm²) | |||||
| Nominal Insulation Thickness mm | Nominal Inner Sheath Thickness mm | Nominal Outer Sheath Thickness mm | Nominal Overall Diameter mm | Nominal Weight kg/km | |
| 1×1.5 | 1 | 1 | 1 | 8.0±2 | 63 |
| 1×2.5 | 1 | 1 | 1 | 8.5±2 | 84 |
| 1×4 | 1 | 1 | 1 | 9.1±2 | 116 |
| 1×6 | 1 | 1 | 1 | 9.6±2 | 137 |
| 1×10 | 1 | 1.1 | 1 | 10.5±2 | 173 |
| 1×16 | 1 | 1.1 | 1 | 11.8±2 | 247 |
| 1×25 | 1.2 | 1.2 | 1.2 | 14.1±2 | 373 |
| 1×35 | 1.2 | 1.2 | 1.2 | 15.2±2 | 478 |
| 1×50 | 1.4 | 1.3 | 1.2 | 16.8:t2 | 625 |
| 1×70 | 1.4 | 1.4 | 1.2 | 18.7:t2 | 845 |
| 1×95 | 1.6 | 1.5 | 1.4 | 21.5:t2 | 1145 |
| 1×120 | 1.6 | 1.5 | 1.4 | 23.1:t2 | 1412 |
| 1×150 | 1.8 | 1.6 | 1.4 | 25.2:t2 | 1717 |
| 1×185 | 2 | 1.7 | 1.4 | 27.7:t2 | 2179 |
| 1×240 | 2.2 | 1.8 | 1.6 | 31.2:t2 | 2793 |
| 1×300 | 2.4 | 1.9 | 1.6 | 34.0:t2 | 3507 |
| 2×1.5 | 1 | 1.1 | 1 | 11.7:t2 | 152 |
| 2×2.5 | 1 | 1.1 | 1 | 12.5:t2 | 184 |
| 2×4 | 1 | 1.2 | 1 | 13.6:t2 | 236 |
| 2×6 | 1 | 1.2 | 1 | 14.9:t2 | 310 |
| 2×10 | 1 | 1.3 | 1 | 16.8:t2 | 441 |
| 2×16 | 1 | 1.4 | 1 | 19.2:t2 | 635 |
| 2×25 | 1.2 | 1.5 | 1.2 | 23.7:t2 | 987 |
| 2×35 | 1.2 | 1.6 | 1.2 | 25.7:t2 | 1244 |
| 2×50 | 1.4 | 1.8 | 1.2 | 29.3:t2 | 1664 |
| 2×70 | 1.4 | 1.9 | 1.2 | 34.3:t2 | 2394 |
| 2×95 | 1.6 | 2.1 | 1.4 | 39.7:t2 | 3245 |
| 2×120 | 1.6 | 2.2 | 1.4 | 43.1:t2 | 3969 |
| 2×150 | 1.8 | 2.4 | 1.4 | 47.5:t2 | 4872 |
| 2×185 | 2 | 2.6 | 1.4 | 52.3:t2 | 6038 |
| 2×240 | 2.2 | 2.8 | 1.6 | 59.3:t2 | 7833 |
| 2×300 | 2.4 | 3 | 1.6 | 65.2:t2 | 9728 |
| 3×1.5 | 1 | 1.1 | 1 | 12.3:t2 | 173 |
| 3×2.5 | 1 | 1.2 | 1 | 13.1:t2 | 215 |
| 3×4 | 1 | 1.2 | 1 | 14.5:t2 | 294 |
| 3×6 | 1 | 1.3 | 1 | 15.6:t2 | 378 |
| 3×10 | 1 | 1.3 | 1 | 18.0:t2 | 557 |
| 3×16 | 1 | 1.4 | 1 | 20.5:t2 | 809 |
| 3×25 | 1.2 | 1.6 | 1.2 | 25.3:t2 | 1260 |
| 3×35 | 1.2 | 1.7 | 1.2 | 274:t2 | 1601 |
| 3×50 | 1.4 | 1.8 | 1.2 | 31.1:t2 | 2132 |
| 3×70 | 1.4 | 2 | 1.2 | 35.0:t2 | 2903 |
| 3×95 | 1.6 | 2.2 | 1.4 | 40.4:t2 | 3932 |
| 3×120 | 1.6 | 2.3 | 1.4 | 44.0:t2 | 4872 |
| 3×150 | 1.8 | 2.5 | 1.4 | 48.5:t2 | 5959 |
| 3×185 | 2 | 2.7 | 1.4 | 54.0:t2 | 7560 |
| 3×240 | 2.2 | 3 | 1.6 | 60.7:t2 | 9765 |
| 3×300 | 2.4 | 3.2 | 1.6 | 70.0:t2 | 12684 |
| 4×1.5 | 1 | 1.2 | 1 | 13.2±2 | 210 |
| 4×2.5 | 1 | 1.2 | 1 | 14.4±2 | 268 |
| 4×4 | 1 | 1.3 | 1 | 15.7±2 | 357 |
| 4×6 | 1 | 1.3 | 1 | 17.2±2 | 478 |
| 4×10 | 1 | 1.4 | 1 | 19.5±2 | 698 |
| 4×16 | 1 | 1.5 | 1 | 22.4±2 | 1019 |
| 4×25 | 1.2 | 1.7 | 1.2 | 27.9±2 | 1607 |
| 4×35 | 1.2 | 1.8 | 1.2 | 30.2±2 | 2053 |
| 4×50 | 1.4 | 2 | 1.2 | 34.3±2 | 2730 |
| 4×70 | 1.4 | 2.1 | 1.2 | 38.7±2 | 3717 |
| 4×95 | 1.6 | 2.4 | 1.4 | 44.8±2 | 5056 |
| 4×120 | 1.6 | 2.5 | 1.4 | 48.8±2 | 6263 |
| 4×150 | 1.8 | 2.7 | 1.4 | 56.3±2 | 8106 |
| 4×185 | 2 | 2.9 | 1.4 | 62.0±2 | 10049 |
| 4×240 | 2.2 | 3.2 | 1.6 | 70.5±2 | 13104 |
| 4×300 | 2.4 | 3.5 | 1.6 | 77.8±2 | 16664 |
| 5×1.5 | 1 | 1.2 | 1 | 15.1±2 | 257 |
| 6×1.5 | 1 | 1.3 | 1 | 16.4±2 | 289 |
| 7×1.5 | 1 | 1.3 | 1 | 16.4±2 | 299 |
| 8×1.5 | 1 | 1.4 | 1 | 18.9±2 | 399 |
| 9×1.5 | 1 | 1.4 | 1 | 20.1±2 | 415 |
| 10×1.5 | 1 | 1.4 | 1 | 20.4±2 | 457 |
| 12×1.5 | 1 | 1.4 | 1 | 21.0±2 | 509 |
| 14×1.5 | 1 | 1.5 | 1 | 22.2±2 | 593 |
| 16×1.5 | 1 | 1.5 | 1 | 23.3±2 | 646 |
| 19×1.5 | 1 | 1.6 | 1 | 24.6±2 | 751 |
| 20×1.5 | 1 | 1.6 | 1 | 25.8±2 | 819 |
| 23×1.5 | 1 | 1.7 | 1 | 27.9±2 | 950 |
| 24×1.5 | 1 | 1.7 | 1 | 28.6±2 | 966 |
| 27×1.5 | 1 | 1.7 | 1 | 29.2±2 | 1034 |
| 30×1.5 | 1 | 1.8 | 1 | 30.4±2 | 1166 |
| 33×1.5 | 1 | 1.8 | 1 | 31.5±2 | 1250 |
| 37×1.5 | 1 | 1.9 | 1 | 32.8±2 | 1381 |
| 44×1.5 | 1 | 2 | 1 | 36.8±2 | 1638 |
| 5×2.5 | 1 | 1.3 | 1 | 16.3±2 | 320 |
| 6×2.5 | 1 | 1.3 | 1 | 17.6±2 | 378 |
| 7×2.5 | 1 | 1.3 | 1 | 17.6±2 | 410 |
| 8×2.5 | 1 | 1.4 | 1 | 20.4±2 | 520 |
| 9×2.5 | 1 | 1.5 | 1 | 21.9±2 | 530 |
| 10×2.5 | 1 | 1.5 | 1 | 22.2±2 | 599 |
| 12×2.5 | 1 | 1.5 | 1 | 22.9±2 | 656 |
| 14×2.5 | 1 | 1.5 | 1 | 23.9±2 | 772 |
| 16×2.5 | 1 | 1.6 | 1 | 25.3±2 | 851 |
| 19×2.5 | 1 | 1.6 | 1 | 26.6±2 | 982 |
| 20×2.5 | 1 | 1.7 | 1 | 28.1±2 | 1087 |
| 23×2.5 | 1 | 1.8 | 1 | 30.4±2 | 1265 |
| 24×2.5 | 1 | 1.8 | 1 | 31.2±2 | 1281 |
| 27×2.5 | 1 | 1.8 | 1 | 31.9±2 | 1360 |
| 30×2.5 | 1 | 1.9 | 1 | 33.1±2 | 1549 |
| 33×2.5 | 1 | 1.9 | 1 | 34.3±2 | 1664 |
| 37×2.5 | 1 | 2 | 1 | 35.8±2 | 1817 |
| 44×2.5 | 1 | 2.2 | 1 | 40.4±2 | 2205 |
