Water Blocked S9 IYXI(c) 60 V
Applications
- These cables are flame retardant, low smoke and halogen-free, used for indoor telecommunication.
Standards
| IEC 60092-359 | IEC 60332-1 |
| IEC 60332-3-22 | IEC 60754-1,2 |
| IEC 61034-1,2 | NEK 606:2004 |
| VG 95218 part 29 |

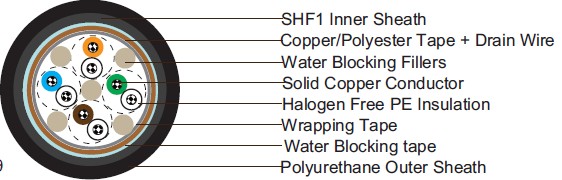

Construction
Conductors: Solid tinned copper, 0.5mm.
Insulation: Halogen-free thermoplastic compound PE.
Twinning: Colour coded cores twisted together. Pairs are cross-stranded to finished cable or 10 pair units. The units are stranded to 20 – 30 – 50 pair cables. 2 pair is stranded as a star quad.
Filler: Water blocking fillers, if required.
Wrapping: Polyester tape.
Collective Shielding: The cable core is screened by copper backed polyester tape in contact with a 0.5mm solid tinned drain wire.
Water Blocking Elements: Water blocking tape and strings for providing longitudinal water tightness.
Inner sheath: Halogen-free thermoplastic compound, type SHF1, coloured grey.
Outer Sheath: Polyurethane for providing transversal water tightness, PE is optional,but can not meet low smoke standard.
Electrical Characteristics
| Nominal Conductor Diameter | mm | 0.5 |
| Maximum Resistant@20℃ | Ω/km | 95 |
| Nominal Inductance@1KHz | MH/km | 0.61 |
| Mutual Capacitance 1-pair cable | nF/km | 90 |
| Mutual Capacitance 2-pair cable | nF/km | 80 |
| Mutual Capacitance 4-pair and above cable | nF/km | 70 |
| Operating Voltage | V | 60 |
Mechanical and Thermal Properties
- Bending Radius : 8×OD (during installation); 6×OD (fixed installed).
- Temperature Range : -10℃ ~ +60℃.
Dimensions and Weight
| Construction No. of elements×No. of cores in element×Core diameter (mm) | Nominal Insulation Thickness mm | Nominal Inner Sheath Thickness mm | Nominal Outer Sheath Thickness mm | Nominal Overall Diameter mm | Nominal Weight kg/km |
| 1×2×0.5 | 0.2 | 1.2 | 1 | 7.0±2 | 32 |
| 2×2×0.5 | 0.2 | 1.2 | 1 | 7.5±2 | 37 |
| 4×2×0.5 | 0.2 | 1.2 | 1 | 9.0±2 | 58 |
| 10×2×0.5 | 0.2 | 1.5 | 1 | 10.5±2 | 95 |
| 20×2×0.5 | 0.2 | 1.5 | 1 | 13.0±2 | 155 |
| 30×2×0.5 | 0.2 | 1.5 | 1 | 15.5±2 | 221 |
| 50×2×0.5 | 0.2 | 1.5 | 1 | 18.0±2 | 336 |
